Tait
TP9400IS

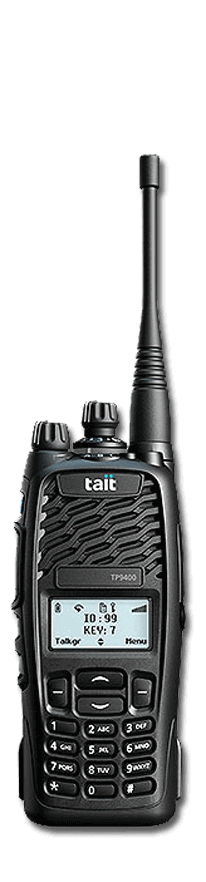

Tait TP9400 IS P25 Phase 2 portables are engineered for operation in hazardous environments, keeping first responders safe while they get the job done.
The TP9400 IS P25 portable radios’ IP67 rating protects up to one meter immersion for up to 30 minutes and a water-shedding grille supports voice clarity and volume in wet environments.
Instantly recognized in-field by the IS trademark blue color, TP9400 IS easily manages migration challenges with analog, P25 conventional and trunked and P25 Phase 2 interoperable capabilities.End-to-end encryption secures all communications and worker effectiveness is enhanced with voice and data capabilities, pre-set status message options and an internal GPS.
Frequency band:
VHF, UHF, 700/800 MHz
Frequency range:
VHF: 136-174 MHz
UHF: 380-470 MHz
700/800: 762-776, 851-870 MHz
Power Output:
VHF: 1-5 W
UHF: 1-4 W
700/800: 1-2.5 W
Standard battery chemistry type:
Li-Ion
Battery life (based on a 5-5-90 duty cycle):
11.5 hours
Number of Channels/Groups/Zones:
1,000 channels/50 zones
Channel spacing:
12.5, 15, 20, 25, 30
Dimensions H x W x D (with standard battery)
2.56 x 5.35 x 1.77 in (65 x 136 x 45 mm)
Weight (with standard battery)
15.16 oz (430 g)
Keypad / Keys
Display
Operating temperature
-4° F to +140° F (-20° C to +60° C)
Mil spec
810D, E, F, 810G
IP Standards
IP67
Maximum safety, powerful performance in hazardous environments
Rated IP67, the TP9400 IS portable is engineered to withstand immersion in up to one meter of water for 30 minutes and includes a water-shedding grille to maintain voice clarity and volume in wet environments. The TP9400 eases migration challenges with analog, P25 Phase 1 conventional/trunked, and P25 Phase 2 interoperable capabilities.
Key Benefits
- Meets strict, global Intrinsically Safe standards
- Rated IP67 for rugged, reliability in hazardous environments
- End-to-end encryption for secure communications
- Improved safety with programmable emergency keys, Man Down, Lone Worker and integrated GPS
- Internationally recognized blue enclosure
- Adheres to P25 standards ensuring multi-vendor interoperability
Spec Sheets
 | TPA-AN-022 TP8/TP9 762-870MHz 1/2 Wave Whip Antenna |
 | TPA-AN-034 TP8/TP9 136-174MHz Helical Antenna |
 | TPA-AN-037 TP9 380-470MHz 1/4 wave whip Antenna |
 | TPA-AN-038 TP9 380-470MHz Helical Antenna |
| T03-22001-AAAA TP93/94 Battery ExIS Li-Ion 2300mAh AEx-US IIA |
| T03-22001-AACA TP93/94 Battery ExIS Li-Ion 2300mAh AEx-US IIC |
| T03-22001-AEAA TP93/94 Battery EXIS Li-Ion 2300mAh CaEx IIA |
| T03-22001-AECA TP93/94 Battery EXIS Li-Ion 2300mAh CaEx IIC |
| T03-22011-BAAA TP93/94 Single Charger AEx/CaEx No Plug Pack |
| T03-22011-BABA TP93/94 Single Charger AEx/CaEx Plug Pack |
| T03-22011-CAAA TP93/94 6-Way Charger AEx/CaEx No Mains Cable |
| T03-22011-CABA TP93/94 6-Way Charger AEx/CaEx Wall Kit US/CAN Mains Cable |
| T03-22011-DAAA TP93/94 Vehicle Charger AEx/CaEx |
| 009-00017-01 PSU Plug Pack 12V 2A US |
| T03-22007-0001 TP93/94 ExIS Carry Case Heavy Duty Leather D-Stud Belt Loop |
| T03-22007-0002 TP93/94 ExIS Carry Case Heavy Duty Leather Spring Clip |
| T03-22007-0003 TP93/94 ExIS Carry Case Heavy Duty Leather Belt Loop |
| T03-22007-0004 TP93/94 ExIS Battery Carry Case Heavy Duty Leather |
| T03-22007-0005 TP93/94 ExIS Battery Carry Case Heavy Duty Leather D-Stud Belt Loop |
| T03-22007-0006 TP93/94 ExIS Battery Carry Case Heavy Duty Leather Spring Clip |
| T03-22007-0007 TP93/94 ExIS Battery Carry Case Heavy Duty Leather Belt Loop |
 | TPA-CA-201 TP8/9 Belt Clip 55mm |
 | TPA-CA-208 TP8/TP9 Belt Clip Adaptor for 55mm Belt Clip |
| T03-22008-BAAA TP93/94 ExIS Headset Heavy-Duty Overhead |
| T03-22008-BABA TP93/94 ExIS Headset Heavy-Duty Behind-Head |
| T03-22009-AAAA TP93/94 ExIS Programming Adapter AEx/CaEx |
| T03-22008-AAAA TP93/94 ExIS Speaker Microphone Storm IP68 E-Button 2.5mm-Jack |
