Tait
TB9300

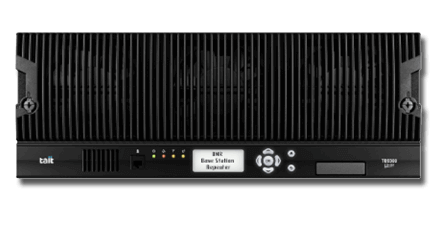

The Tait TB9300 is an IP connected, digital base station for DMR Tier 2 (conventional) or Tier 3 (trunked) networks. Their functionality allows for flexible network designs and easy migration paths from analog networks to DMR. These spectrally efficient base stations provide a 6.25kHz equivalent operation using two TDMA channels in one 12.5kHz channel, giving you greater capacity now and providing a future path for expansion.
Frequency band:
UHF, VHF, 700/800 MHz, 900 MHz
Frequency range:
VHF 136-156MHz, 148-174MHz, 174-193MHz, 216-225MHz
UHF 330-380MHz, 380-420MHz, 400-440MHz, 440-480MHz, 400-470MHz, 470-520MHz
700/800MHz Tx:762-870MHz,Rx:794-824MHz, Tx:757-758MHz,Rx:787-788MHz
900MHz Tx:927-941MHz,Rx:896-902MHz
Power Output:
upto 100W
Number of Channels/Groups/Zones:
Channel spacing:
Dimensions H x W x D (with standard battery)
7x 19 x 15.8in (177x 483x 400)
Weight (with standard battery)
Single50W: 47.4lb (21.5kg) SingleRx only: 37.5lb (17.0kg)
Single100W: 50.3lb (22.8kg)
Dual 50W: 63.1lb (28.6kg) Dual Rx only: 43.2lb (19.6kg)
Operating temperature
-22°Fto 140°F(-30°Cto 60°C)
Smooth Migration
Tait has the best migration stories around. The TB9300 operates in multiple modes, including Analog Conventional, MPT-1327, DMR Tier 2, and DMR Tier 3. You can install the base station to operate on your existing network today, and then upgrade with ease when ready
Receiver Performance
The TB9300 offers exceptional receiver performance and exceeds or matches all other DMR base stations on the market for sensitivity, selectivity and intermodulation performance. This means that the user gets extended talk-in (uplink) range as well as significantly increased resistance to interference for clearer, more consistent audio.
Operational efficiency
The TB9300 provides operational efficiencies through remote network management and IP connectivity capabilities, which includes alarm monitoring and reporting, inbuilt diagnostics, and remote software downloads. It also supports packet data over traffic channels for Workforce Management, Telemetry, SCADA and other applications.
Security-focused
The remote network management is utilized with built-in secure https web server and SNMPV3 support. The TB9300 also offers enhanced security through password protection and access level control on the web server. Multiple user accounts with varying access can be maintained, and audit and system logs can be retained.
Resilient, reliable communications
To give you confidence in your communications in even the most challenging environments, the TB9300 is rated for continuous full output power and ensures continuity of operation with smart AC/DC management. With support for up to two base station software releases, it gives you the ability to roll-back software updates. Like all Tait products, it's built Tait Tough and meets relevant MIL-STD-810G test methods.
Easy to Maintain
The modular design of the TB9300 allows cost-effective deployment, maintenance, and upgrades. It is software configurable, including feature upgrades through software licenses, and software upgrades can add new features and functionalities to ensure that your DMR solution is kept up to date with the ever-changing needs of your organization's environment.
Spec Sheets
![]() | 302-06033-00 TB9400 Offset Mounting Bracket (front mount) - Order qty of 2 to mount a single base station. |
![]() | T01-01150-0002 Kit TBC Single Channel upgrade for TB9300 |
![]() | TBAA03-13 TB8000/9000 Auxiliary Support Bracket |
![]() | TBAA03-16 TB8000/9000 Carrying Handles |
![]() | TBC101A TB73/93/94 E&M Isolation Adaptor |
![]() | TB9315D-050T TB9300 Dual 50Watts Chassis Assembly |
![]() | TB9315S-050T TB9300 Single 50Watts Chassis Assembly |
![]() | TB9335S-100T TB9300 Single 100Watts Chassis Assembly |
![]() | T01-01136-CAAC TB9300 Constant Envelope PA 136-174MHz 50Watts |
![]() | T01-01136-CBAC TB9300 Constant Envelope PA 136-174MHz 100Watts |
![]() | T01-01136-EBAA TB9300 Constant Envelope PA 174-225MHz 100Watts |
![]() | T01-01136-JAAC TB9300 Constant Envelope PA 380-520MHz 50Watts |
![]() | T01-01136-JBAC TB9300 Constant Envelope PA 380-520MHz 100Watts |
![]() | T01-01136-NAAA TB9300 Constant Envelope PA 762-870MHz 50Watts |
![]() | T01-01136-NBAA TB9300 Constant Envelope PA 762-870MHz 100Watts |
![]() | T01-01136-QBAA TB9300 Constant Envelope PA 850-941MHz 100Watts |
![]() | T01-01105-CAAA TB9300 DMR Reciter 136-156MHz |
![]() | T01-01105-DAAA TB9300 DMR Reciter 148-174MHz |
![]() | T01-01105-FAAA TB9300 DMR Reciter 216-225MHz |
![]() | T01-01105-KAAA TB9300 DMR Reciter 400-440MHz |
![]() | T01-01105-LAAA TB9300 DMR Reciter 440-480MHz |
![]() | T01-01105-NAAA TB9300 DMR Reciter 762-870MHz |
![]() | T01-01105-QAAA TB9300 DMR Reciter 896-941MHz |
![]() | TBA3001-1100 TB9000 Power Management Unit DC12volts with Aux12volts |
![]() | TBA3001-1200 TB9000 Power Management Unit DC12volts with Aux24volts |
![]() | TBA3001-1400 TB9000 Power Management Unit DC12volts with Aux48volts |
![]() | TBA3002-2100 TB9000 Power Management Unit DC24volts with Aux12volts |
![]() | TBA3002-2200 TB9000 Power Management Unit DC24volts with Aux24volts |
![]() | TBA3002-2400 TB9000 Power Management Unit DC24volts with Aux48volts |
![]() | TBA3004-4100 TB9000 Power Management Unit DC48volts with Aux12volts |
![]() | TBA3004-4200 TB9000 Power Management Unit DC48volts with Aux24volts |
![]() | TBA3004-4400 TB9000 Power Management Unit DC48volts with Aux48volts |
![]() | TBA30A0-0100 TB9000 Power Management Unit AC with Aux12volts |
![]() | TBA30A0-0200 TB9000 Power Management Unit AC with Aux24volts |
![]() | TBA30A0-0400 TB9000 Power Management Unit AC with Aux48volts |
![]() | TBA30A1-1100 TB9000 Power Management Unit ACDC12volts with Aux12volts |
![]() | TBA30A1-1200 TB9000 Power Management Unit ACDC12volts with Aux24volts |
![]() | TBA30A1-1400 TB9000 Power Management Unit ACDC12volts with Aux48volts |
![]() | TBA30A2-2100 TB9000 Power Management Unit ACDC24volts with Aux12volts |
![]() | TBA30A2-2200 TB9000 Power Management Unit ACDC24volts with Aux24volts |
![]() | TBA30A2-2400 TB9000 Power Management Unit ACDC24volts with Aux48volts |
![]() | TBA30A4-4100 TB9000 Power Management Unit ACDC48volts with Aux12volts |
![]() | TBA30A4-4200 TB9000 Power Management Unit ACDC48volts with Aux24volts |
![]() | TBA30A4-4400 TB9000 Power Management Unit ACDC48volts with Aux48volts |
