Our Smallest, Water Submersible Digital Portable Radio
You can afford to enhance your communications with the digital performance of eVerge™ two-way radios. eVerge radios are compact and precision-engineered to deliver value without sacrificing quality — giving you more capabilities and the flexibility you need to communicate at your best.
8-Character Alphanumeric Display
256 channels
4 Programmable Keys
UHF: 403-470 MHz
CTCSS/DCS Encode and Decode
Multiple Scan Options
ARTS
Performance Characteristics
Frequency Band:
UHF
Frequency Range:
UHF: 403 – 470 MHz
Power Output:
Digital 3 W/2 W/1 W/0.5 W, Analog 2 W/1 W/0.5 W
Number of Channels/Groups/Zones:
256 Channels / 16 Groups
Standard battery chemistry type:
Battery life (based on a 5-5-90 duty cycle):
Digital 3W: 12 Hours/Analog 2W: 11 Hours
Physical Characteristics
Dimensions H x W x D (with standard battery)
3.58 x 2.17 x 1.24 Inches (91 x 55 x 31.5 mm)
Weight (with standard battery)
7.6 oz [215 g] with [FNB-V142LI, ATU-20, Belt Clip]
Keypad / Keys
4 Programmable Keys
Display
8 Character Alphanumeric Display
User Environment
Operating temperature
-22º F to +140º F (-30º C to +60º C)
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP67
Key features
Supports digital and analog communications
UHF, VHF
256 Channels/ 16 Groups
1.0 – 3.0 Watts Output Power
4 Programmable Keys
8 Character Alphanumeric Display
Water Submersible and Dust Proof (IP67)
Compact, discreet, lightweight
Give your team members a compact, discreet, and lightweight radio that allows them to be comfortable in any situation.
Safety features
Lone worker alert, emergency alert, multiple scan options, better radio call quality with AMBE+2™ vocoder, battery status indicator (low battery alert), battery saver, busy channel lock out (BCLO), time out timer, key lock, AF minimum volume, auto power off, escalating alerts, low power, whisper mode, RSSI Indicator, and internal VOX (VH-190 required).

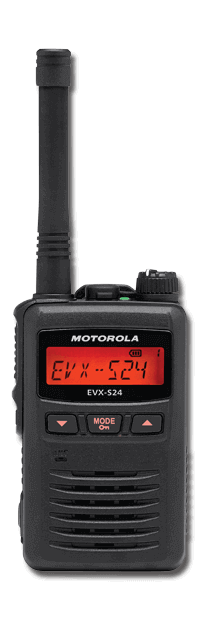

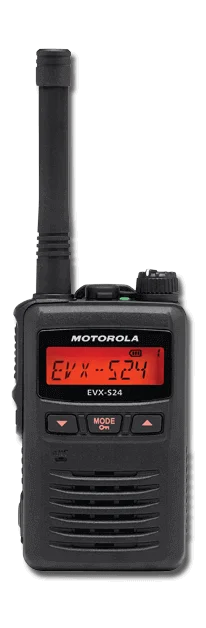

EVX-S24 Portable Digital Two-Way Radio: Compact, Discreet, Lightweight
Worn on a belt, tucked away in a pocket or clipped to a lapel, the water-submersible and dust-proof EVX-S24 is designed to survive demanding conditions. It operates in both analog and digital modes, so it's ideal for use with mixed fleets. And in digital mode, enjoy noise cancellation for crisp audio and clear conversations.
Antennas
AAE23X501
ATU-6A 400-430 MHZ
AAE23X502
ATU-6C Antenna 440-470 MHz
AAE23X503
ATU-6D Antenna 450-485 MHz
AAE23X506
ATU-6B Antenna 420-450 MHz
AAM23X501
ATU-20AS Regular Stubby Antenna 400-430 MHz
AAM23X502
ATU-20DS Regular Stubby Antenna 440-470 MHz
AAM23X503
ATU-20FS Regular Stubby Antenna 450-480 MHz
AAM23X504
ATU-20CS Regular Stubby Antenna 420-450 MHz
AAM28X501
ATU-21AS Super Stubby Antenna 400-420 MHZ
AAM28X502
ATU-21CS Super Stubby Antenna 420-440 MHZ
AAM28X503
ATU-21DS Super Stubby Antenna 440-460 MHZ
AAM28X504
ATU-21FS Super Stubby Antenna 460-480 MHZ
Carry Accessories
AAM18X501
CLIP-27 Belt Clip
AAM22X501
LCC-S24 Leather case with belt loop
AAM22X502
LCC-S24S Leather case with swivel belt loop
Chargers
AAM19X501
CD-65 Standard Charging Cradle
AAM20X501
CD-66 Enhanced Charging Cradle
Earpieces & Surveillance Accessories
AAM21X501
MH-89A4B Earpiece Microphone
Speaker Microphones
AAE46X509
MH-66F4B IP57 Submersible Speaker Microphone
AAM24X501
MH-90A4B Compact Speaker Microphone
The Motorola EVX-S24 is available in the following UHF models.
AC146U502-MOT-NA 403-470 MHz, 256 Channels, 1-3 Watt - BLACK
