L3Harris

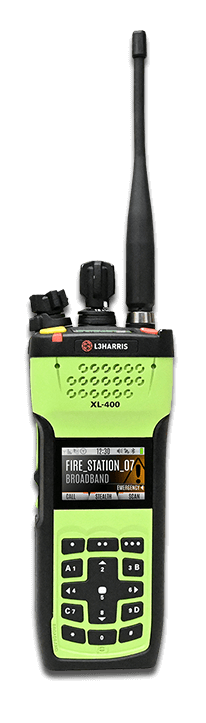

XL Extreme 400P
You don’t flinch in the face of danger. Neither should your radio. L3Harris’ XL Extreme™ 400P is tailor-made to keep everyone connected even in the most extreme conditions.
Rugged and Ready for Anything
This radio’s rock-solid construction is engineered to withstand anything the environment can throw at it. With new hardware designed to the toughest industry standards, the 400P features extreme thermal materials, reinforced seal design, and unique thermal-rated displays and speakers. All new heavy-duty, glove-friendly keypad, knobs, and large Emergency button with L3Harris’ unique visual zone indication, ambient temperature, and optional in-building location capabilities keep your team in sync when the heat is on.
Frequency Band:
VHF, UHF, 700/800 MHz, 2402-2480, 5180-5825
Frequency Range:
VHF: 136-174 MHz
UHF: 378-522 MHz
700/800: 768-776, 798-806, 806-816, 851-861 MHZ
2402-2480
5180-5825
Power Output:
VHF: 1-6 W, UHF: 1-5 W, 700/800: 0.5-3W, 2402-2480: 0.2 W, 5180-5825: 0.1 W/p>
Standard battery chemistry type:
Li-Ion, Capacity (mAh) 4000
Battery life (based on a 5-5-90 duty cycle):
Number of Channels/Groups/Zones:
1,250 total conventional channels and 13,824 total talkgroups
Channel spacing:
25, 12.5 6.25 kHz
Dimensions H x W x D (with standard battery)
6.6 x 2.5 x 2.5 in (168.0 x 64.0 x 43.7 mm)
Weight (with standard battery)
14.7 oz (418 g)
Keypad / Keys
Backlight, 3 soft keys, 5-way navigation key
Display
Front Display: 320 x 178 pixels, 1.8 in transflective LCD, 16-bit color with backlight
Top Display: 128 x 32 pixels, 1.1 in multicolor backlight, sunlight readable
Operating temperature
-22° to +140°F (-30° to +60°C)
Mil spec
MIL-STD-810G
IP Standards
IP68
Key Benefits
- LTE connectivity over AT&T® and Verizon® networks
- Loud and clear audio with industry-leading noise cancellation
- Wi-Fi® and Bluetooth® integration expands connectivity
- Glove-friendly operation and large emergency button
- Expanded top display with unique Visual Zone Indication and live stream video
- 24/7 preventative maintenance and software upgrades available
The XL Extreme™ 400P Is Your Connection When the Heat is On
Rock-solid and engineered to withstand anything the environment can throw at it, including your mission. Built to exceed today’s toughest industry standards. And yours.
- Dropped ruthlessly from 10 feet multiple times
- Broiled at 500°F for 5 red-hot minutes
- Shocked at 350ºF for 15 minutes 6 times
- Torched at 1700ºF for 10 scorching seconds
- Frozen and not letting go
- Drowned at 5 meters for 4 wet hours
- Abraded with corrosive salt water and humidity
- Tumbled for 3 dizzying hours
- Vibrated for up to 3 teeth-chattering hours
- Stretched up to 35 pounds
- Compressed up to 442 excruciating pounds
That tough.
One Radio, All Bands
During multi-agency responses, this multiband portable provides superior interoperability, and secure voice and data.
- Built-in LTE, Wi-Fi® and GPS®
- End-to-end voice and data encryption
- Fast, easy in-mask Bluetooth audio pairing
Designed by and for Firefighter Challenges
Keeping everyone on your team connected is critical in extreme conditions such as fireground operations.
- Top display with our unique visual zone coding
- Color tagging and audio playback for last 5 calls
- Larger emergency button and optional in-building location technologies
