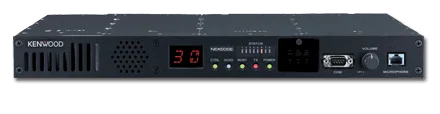

Kenwood
NXR-900 / 901
The KENWOOD NXR-900 and NXR-901 NEXEDGE® 800/900 MHz digital & analog repeaters allow users to replace existing 800MHz & 900MHz systems and are designed for use by utilities, SMR operators, transportation, government agencies and critical infrastructure. All offer NXDN® conventional, conventional IP, trunked single site and multi-site network capabilities and operate in 6.25 and 12.5 kHz digital modes.
Frequency Band:
800MHx/900MHz
Frequency Range:
806 - 825, 851 - 870 MHz / 896-902, 935-941 MHz
Power Output:
40 / 80 / 130 W (800 MHz) - 40 / 75 / 130 W (900 MHz)
Number of Channels/Groups/Zones:
Channel spacing:
12.5 kHz, 12.5 /25 kHz Analog
6.25 / 12.5 kHz Digital
Dimensions W x H x D
19.02 x 1.73 x 13.03 in
Weight
11 lb
Keypad / Keys
No Keypad
Display
Two-Digit LED Display
Operating temperature
-22˚ F to + 140˚ F
Mil spec
NA
IP Standards
NA
- Fully Supports NXDN Type-C Trunking & 2nd Generation as well as NXDN Conventional
- Mixed Digital & FM Analog Operation
- Built-in IP Interface for sending remote control command in both conventional and trunking modes
- 30 Channel Scanning Base Station (Conventional Mode)
- 0.5-5 W, 5-25 W RF/Exciter Output
- 360 mW Exciter Output
- Repeater Operation
- LED Status Indicators
- 6 Programmable Function Keys
- 0.3 Watt Front Panel Speaker
- 3 Watt External Speaker Audio
- Volume Control
- Program/Modem Interface
- Remote Termination Interface
- Programmable AUX I/O's
- DTMF Front Panel PF Key Control
- DTMF AUX Output Control
- DTMF AUX Input Monitoring
- KPG-109D Windows® FPU
- Flash Firmware Upgrading
Brochures
No Accessories List at present
Please Contact Us for more information
- NXR-900K Repeater, Digital, RX 806-825 MHz, TX 851-870 MHz
- NXR-901K Repeater, Digital, RX 896-902MHz, TX 935-941MHz
