NX-700 / 800

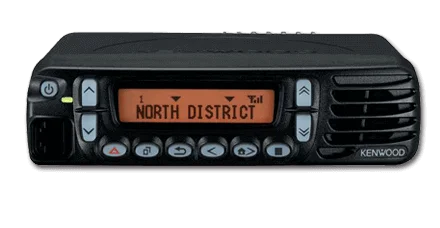

KENWOOD NX-700

Kenwood

NX-700 / 800

As smart in operation as they are in looks, the KENWOOD NX-700 and NX-800 radios feature everything necessary to take full advantage of both digital and analog operating modes. Mobile users will appreciate the large dot-matrix LCD, intuitive controls and multi-scan capabilities.

Performance Characteristics

Frequency Band:
VHF, UHF

Frequency Range:
136-174 MHz / 400-470, 450-520 MHz

Power Output:
30W- 50W VHF - 30W - 45W UHF

Number of Channels/Groups/Zones:
512 Channels / 128 Zones

Channel spacing:
12.5 / 15 / 25* / 30* kHz 12.5 / 25* kHz Analog
12.5 / 25 kHz Digital

Physical Characteristics

Dimensions W x H x D
6.30 x 1.77 x 6.18 in

Weight
3.04 lb

Keypad / Keys
No Keypad

Display
14-Character Alphanumeric Aliases

User Environment

Operating temperature
-22˚ F to +140˚ F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54/55

  • Dash & Remote Mount
  • Dual Control Head Remote Mount
  • 14-Character Alphanumeric Aliases
  • Backlit Dot Matrix LCD
  • Function/Status LCD Icons
  • Multi-Language Display
  • Date & 12/24 Hour Time Clock
  • Transmit/Busy/Call Alert/Warn LED
  • On/Off Power Control
  • 4 Up/Down Selectors
  • 6 Front PF Keys
  • Emergency/AUX Key
  • 4W Speaker Audio
  • DB-25 Accessory Connector
  • 9 Programmable AUX I/Os
  • 2 Programmable AUX Outputs
  • KPG-111D Windows® FPU
  • Flash Firmware Upgrading
  • PC Serial Interface
  • SDM Manual Input
  • Transparent Data Mode1
  • GPS Receiver Option
  • VGS-1 Voice Guide / Voice & GPS Data Storage Option

Control Station Accessories [+]

No Image Available

KMB-34

Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series).
(mobile mounting hardware included)
KMC-59

KMC-59C

Control Station Desktop Microphone (8-pin mod. plug)
Note: Compatible with FDMA (analog) and TDMA operations.
KMC-9

KMC-9C

Control Station Desktop Microphone (8-pin mod. plug)
No Image Available

KPS-15

DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak)

Microphones And Speakers [+]

KES-3

KES-3S

External speaker (compact low profile; black case; 3.5 mm phono plug-in)
KES-5

KES-5

External speaker, 40W max input
Note: requires KCT-60M installed.
KMC-35

KMC-35

MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied
KMC-36

KMC-36

MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug)

Mobile Installation Accessories [+]

No Image Available

KAP-2

Horn Alert/P.A. Relay Option
Note: For MPT, HA operates in Trunked Mode only.
No Image Available

KCT-23M

DC Cable (35-50W Dash mount; pos/neg. 10 ft. leads)
No Image Available

KCT-23M3

DC Cable (35-50W Remote mount; pos.23 ft.; neg. 3.3. ft. leads)
KCT-46

KCT-46

Ignition sense cable (plugs directly into mobile chassis ignition sense line).
KLF-2

KLF-2

Line Filter (suppresses alternator whine, 25dB, 25A max).
KMB-10

KMB-10

Key lock adapter
KRK-10

KRK-10

Remote Control Kit (a remote control cable (23 ft) is included).
  • NX-700K 136-174 MHz 30W, 512 CH / 128 Zone
  • NX-700HK 136-174 MHz 50W, 512 CH / 128 Zone
  • NX-800K 450-520 MHz 30W, 512 CH / 128 Zone
  • NX-800K2 400-470 MHz 30W, 512 CH / 128 Zone
  • NX-800HK 450-520 MHz 45W, 512 CH / 128 Zone
  • NX-800HK2 400-470 MHz 45W, 512 CH / 128 Zone
