Kenwood
NX-3400/3420

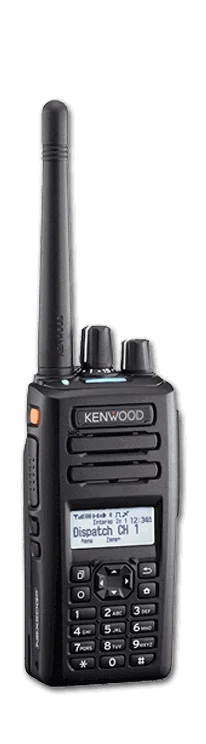

This versatile KENWOOD NX-3400 and NX-3420 800-900 MHz handheld radio supports both NXDN and DMR digital protocols as well as mixed digital & FM analog operation, enabling it to serve with distinction in a wide range of enterprise- and operation-critical applications. Compact yet designed with durability in mind, it’s packed with convenient features like Bluetooth® for hands-free operation and built-in GPS. Additionally, for expansion capability a software license certification system facilitates extensive customization.
Frequency Band:
800MHz/900 MHz
Frequency Range:
806-825, 896-902 MHz / 851-870, 935-941 MHz
Power Output:
3W / 1W
Standard battery chemistry type:
Li-ion
Battery life (based on a 5-5-90 duty cycle):
10.5 Hours
Number of Channels/Groups/Zones:
512 Channels / 128 Zones (NX-3400)
260 Channels / 128 Zones (NX-3420)
Channel spacing:
12.5/25 kHz Analog
6.25 / 12.5 kHz Digital
Dimensions W x H x D (with standard battery)
2.20 x 4.71 x 1.43 in
Weight (with standard battery)
11.1 oz
Keypad / Keys
4-way Directional-pad (D-pad)
Display
4-Line Basic Frame / 14 Characters
Operating temperature
-22˚ F to +140˚ F
Mil spec
MIL-STD-810 C/D/E/F/G
IP Standards
IP54, IP55, IP67
- Full Keypad Model (w/ LCD and D-pad/12 key)
- 4-Line Basic Frame (2-Line Main/Sub-LCD, icon & key guide)
- 5-Line Text Message Frame (3 Lines of Text, icon & key guide)
- Multi-Language Display
- Date & 12/24 Hour Time Clock
- 7-color Light Bar Indicator
- Transmit/Busy/Call Alert/Warn LED
- Remote Stun/Kill/Check
- On/Off Volume Knob
- 16-Position Mechanical Selector
- 4-way Directional-pad (For Standard/Full Keypad)
- Emergency Key
- 2 Side PF Keys
- 1W Speaker Audio
- Dual Digital Protocol
- Emergency Call Features
- Built-in GPS Receiver / Antenna
- Built-in Bluetooth® 4.0 Module
- Built-in Motion Sensor
- Active Noise Reduction (ANR)
- KPG-D3N Windows® FPU
- Flash Firmware Upgrading
- Optional Software-based DES and AES . Encryptions (Digital Only)
- Digital Encode/Decode Format
Brochures
 | KRA-32K 700/800 MHz Whip Antenna |
 | KRA-36 700/800 MHz Stubby Antenna |
 | KRA-38K 800/900 MHz Whip Antenna |
| KRA-39 900 MHz Stubby Antenna |
 | KBP-5 AA Alkaline Refillable Battery Pack (6 AA; 9V) cells not included |
| KMB-16 Six Unit Charger Adapter for the KSC-16/20/24/25/25L chargers (chargers not included) |
| KMB-23 Six Unit Charger Adapter for the KSC-16/20/24/25/25L/32 chargers (chargers not included) |
 | KNB-55L 1480 mAh, Li-ion battery - requires KSC-25SK/25LSK/256K/256AK charger |
 | KNB-56N 1400 mAh, Ni-MH battery |
 | KNB-57LAM 2000 mAh, Li-ion battery |
 | KNB-78LM 2860 mAh, Li-ion battery, IP67, battery only, best for trunked mode operation |
 | KSC-256AK Rapid-rate 6-Unit charger for KNB-26N/55L/56N/57L/57LAM/68LC/78LM/79LCM |
 | KSC-25LSK 100~240 volt rapid rate single unit charger for KNB-40LC(V)/55L/57L/57LAM/68LC Li-ion Battery |
| KSC-25SK 110 volt Rapid-rate single-unit charger for KNB-26N/40LC(V)/55L/56N/57L/57LAM/68LC |
| KVC-23 Rapid-rate DC vehicular charger for TK-5x10/5x20, NX-5x00/x00/x10/x20, TK-x180, TK-x170, & TK-x360 portables with Lithium Ion/Lithium Polymer/NiMH packs only |
| KVC-4 Vehicular charger adapter for the KSC-16/18/20/24/25SK chargers (chargers not included) *KSC-25LSK is not compatible with KVC-4. |
 | KBH-11 Spring action belt clip (2.5") |
| KBH-8DS Leather swivel belt loop with portable D-Ring attachment |
| KLH-206K3 Heavy-Duty Leather Case w/Swivel Belt Loop for Full Kyepad Model |
| KLH-207K3 Nylon carrying case for Full Keypad Model |
 | KEP-1 3.5mm earphone kit for KMC-48GPS Speaker Mics |
 | KEP-2 2.5mm earphone kit for KMC-17/45D Speaker Mic |
 | KHS-10D-BH Heavy-duty behind-the-headset w/noise canceling boom mic & in-line PTT |
| KHS-10D-OH Heavy-duty over-the-headset w/noise canceling boom mic & in-line PTT |
| KHS-11BL 2-wire palm mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory] |
| KHS-12BL 3-wire mini lapel mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory] |
| KHS-14 Lightweight Single muff headset w/boom mic & In-line PTT [Intrinsically Safe Approved Accessory] |
| KHS-15D-BH Heavy-duty noise reduction behind-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory] |
| KHS-15D-OH Heavy-duty noise reduction over-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory] |
| KHS-22 Behind-the-Head Headset with flexible boom mic and in-line PTT single ear |
 | KHS-26 Clip Mic w/earphone |
 | KHS-27A D-Ring Ear Hanger w/PTT & Mic |
| KHS-31C C-Ring Ear Hanger w/PTT & Mic |
 | KHS-7 Single muff headset w/boom mic |
| KHS-7A Lt. Wt Single muff headset w/boom mic & in-line PTT |
 | KHS-8BL Two-Wire palm mic w/earphone (black) |
 | KHS-9BL Three-Wire lapel mic w/earphone (black) |
| KMC-21 Compact speaker microphone |
| KMC-40 DESCRIPTION |
| KMC-41M MIL-SPEC, IP54/55 Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory] |
| KMC-42WDM MIL-SPEC, IP67 (Immersion) Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory] |
 | KMC-45D MIL-SPEC, IP54/55 Speaker microphone (Built-in 2.5mm miniature earphone jack) |
| KMC-54WDM MIL-SPEC, IP67 (Immersion) Speaker Mic Compatible with ANR Feature |
- NX-3400K3 800/900MHz, 3.0 Watts, 512 CH, Full Key Model, NXDN Conv & Trunking
- NX-3420K3 800/900MHz, 3.0 Watts, 260 CH, Full Key Model, NXDN Conv & Trunking
CSA US APPROVED MODELS
- NX-3400-ISCK3 800/900MHz, 3.0 Watts, 512 CH, Full Key Model, NXDN Conv & Trunking
- NX-3420-ISCK3 800/900MHz, 3.0 Watts, 260 CH, Full Key Model, NXDN Conv & Trunking
